Something compels me to make boats out of everything. As such, when I picked up a strange homemade motorized bike at an auction, my first thought wasn’t about biking. It was about “how do I make this float?”
After a lot of messing around with an old surfboard and some scrap materials, I got the bike to float! It doesn’t actually move very fast, unfortunately the little wheels just don’t push enough water. This idea might come back again in the future, but for now, here’s my first foray into amphibious surfbiking:
For those of us with ADHD, here’s the (very) short version from Youtube’s new attempt to enter the short format vertical video market:
Forget big screen TVs, pool tables, and bad taxidermy, how about a homemade bar in an actual* cave?
*Technically it’s a mine, since it’s an artificial tunnel/cavern that I’m digging out.
Anyway, Jim from Sandland has kindly allowed me to explore my inner mole man by excavating a small bar / saloon / speakeasy in the sandstone bedrock. This won’t be a commercial operation or open to the public, it’s just a fun place to hang out! (And before you spam the comments with “how’s the air” or “will this collapse”, scroll down to the follow-up videos where I address those common questions!)
Since picking up a free 1970s tri-hull boat last year, I’ve been struggling with getting it running and usable. As with many of my older engines, this was a never-ending process of fighting carburetors, timing, ignition, etc. The old outboard motor took so much time and attention that I never got around to doing any interesting mods on the boat, like building a cabin or installing fun gadgets.
Well, I finally gave up and got a NEW boat! And by new, er, I mean, even older! This one is a 1962 Dorsett Catalina, with a (supposedly more modern) V8 engine and a jet drive! This one has had it’s share of repairs and upgrades as well, but at least it runs and I’ve actually gotten it to go fast! See the video above for “Part 1” of the jet boat project, or skip to the one below for actual “going fast” footage (starts around 8min in).
Boat season is winding down a bit in Minnesota as we get into fall, but there are a lot of future projects (and hopefully, trips!) planned for this boat!
If you’ve been holding off on buying a new T-shirt, waiting for me to release official merchandise, well wait no more! Throw away your old threadbare threads and head on over to my Teespring store! There are products from the Youtube channel and some other stuff as well!

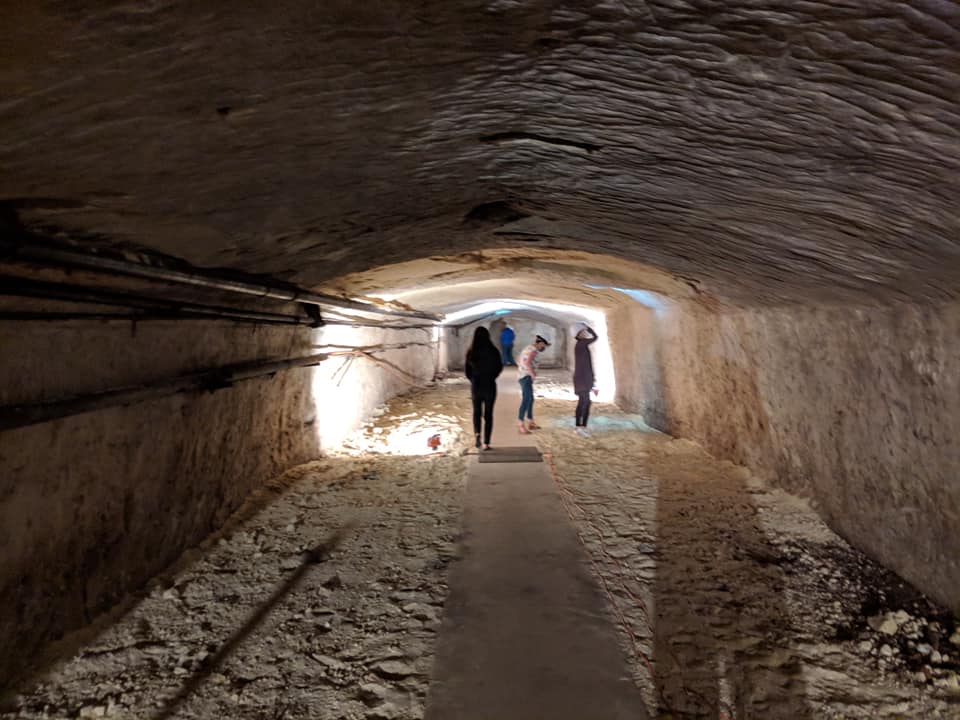

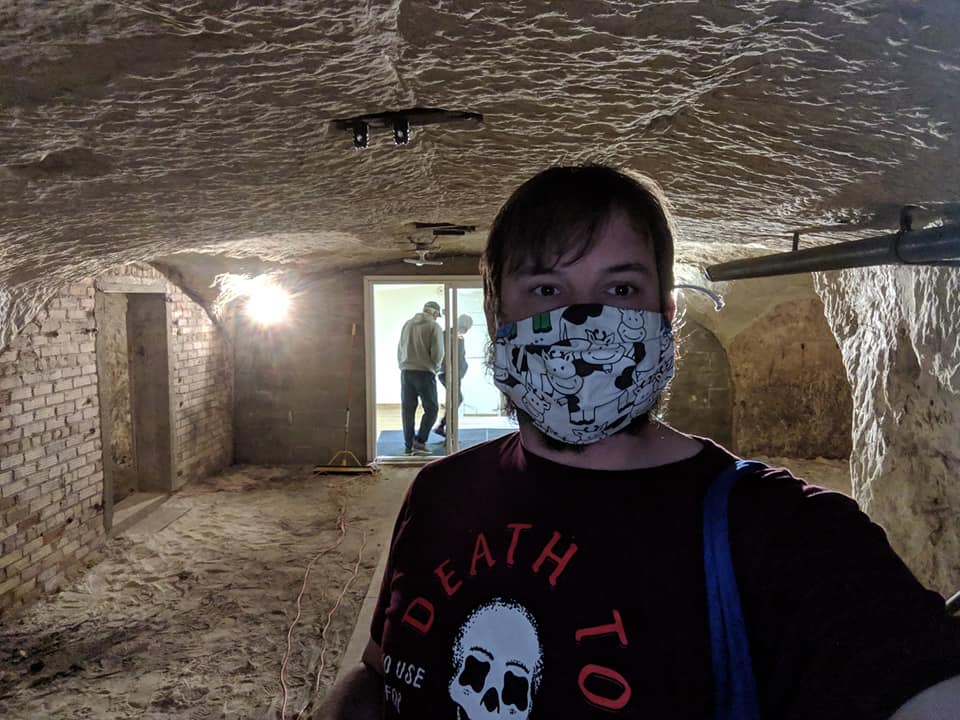

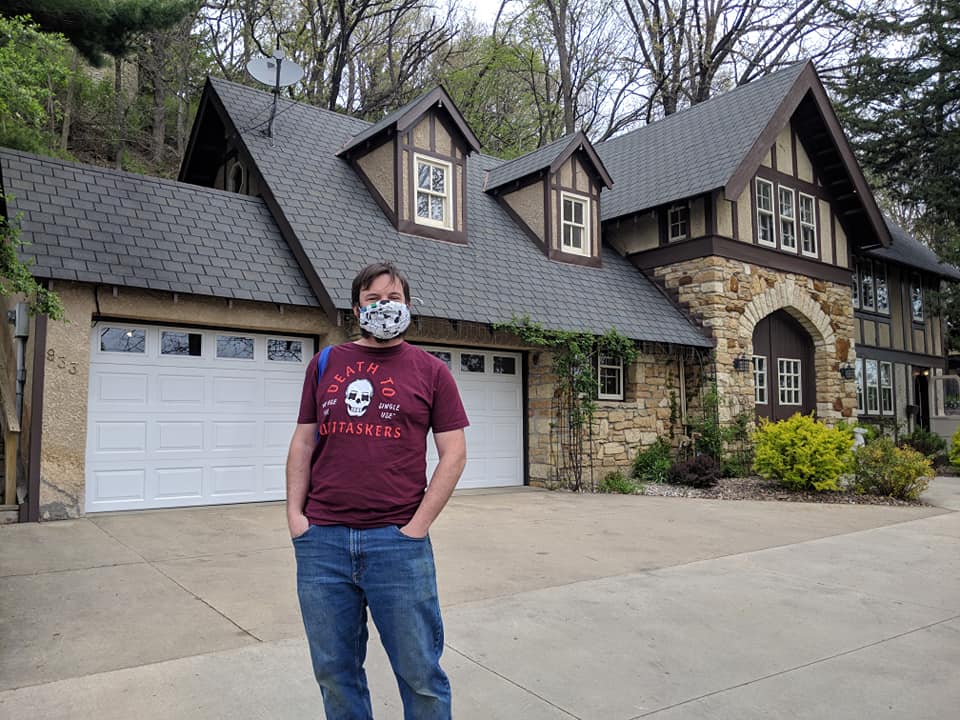

A Minnesota real estate listing went viral recently due to the artificial sandstone caves connected to the house. Since I’m involved in digging sandstone caves of my own, I thought it would be fun to take a look! We investigated the cave layout and design, as well as some of the history of the property and surroundings. I have a video tour of the property below:
And here’s the quick map I made of the caves and house (it’s not 100% accurate, especially with regards to the house layout, but I did my best to do the caves to scale!).
A while ago I posted about our garden pond and homemade filter swamp. Prior to building the fish pond, we did a smaller pond for our pet ducks & goose. This one is basically just a buried stock tank next to the bird coop.
Since water birds produce a lot of umm… “dirt” in the water, we wanted a pretty beefy filter to keep the water clean. The pond includes a submerged pump (Tetrapond 1000) with plumbing that runs up to an external barrel. The barrel drops water into the bottom, then filters it upwards through progressively smaller layers of stones, pumice, gravel, and composite filter media. The filtered water runs off the top of the barrel and back into the pond.
That thing in the center of the barrel is an aerator tower. Water is pumped into the side of the large plastic pipe, which has an opening at the top for air. The water then drops down inside the large pipe, ideally pulling some air along with it and mixing the air in with some nice splashing.
Here’s what the aeration tower looks like before it went into the barrel. The “legs” at the bottom hold up the first layer of filter media (larger rocks / gravel on plastic grating) and maintain an open space at the bottom where solids can settle out. Water comes in near the top of the tower through a small pipe with a 90-degree fitting inside. This makes sure it drops straight down the center of the tower to maximize splashing.
Below shows the tower inserted into the barrel. At the bottom you can see angled pipes with 90s that inject the new water in a circular pattern into the bottom of the tank. This helps stir the bottom chamber to avoid clogs and let the sediment settle out.
Here are a couple rough sketches I made while planning this out. Neither of these shows exactly what we did with the filter media. Some websites suggested things like floor scrubber pads, but we ended up using layers of large rocks, gravel, and pumice, then topped it off with some filter mat rolls intended for koi ponds. The idea is not only to filter out solids, but to create a lot of different-size crevices and surfaces for beneficial bacteria to grow. The bacteria does the bulk of the cleaning by removing dissolved nutrients from the water.
The final setup is seen below. We have water-loving plants growing in the top of the filter barrel. The red thing in the pond is a float valve that tops off the pond from a rain barrel on the bird coop. The other white pipe coming in from behind the coop is an overflow from the rain barrel, so when it’s full the extra rain water also goes to the pond.
So far the filter has worked great through several years of use. Without filtering, the duck pond would grow mats of stringy slimy algae. With the filter, any green stuff grows inside the filter media and the pond water stays crystal clear! In fact, one year we accidentally raised goldfish in the bird pond!
In the winter we shut all this down and drain the whole system so it doesn’t freeze. The barrel filter has a large cleanout valve at the bottom, it’s large enough to stick a hose in and wash out all the sand that builds up. For the winter the birds get a smaller shallow pond (kid’s sandbox) that’s small enough for a submerged heater to keep liquid.
Here’s the video tour of the finished pond system:
I’ve dabbled in railroad bikes or “velocipedes” before, but recently I’ve been trying to create an improved design. The following set of videos are my early model, I’m currently working on an even better one!
Stay tuned for the future adventures of this silly hobby, as I add… MORE POWER!
Yes, I know it’s a little more modern than my usual Funter Bay History posts, but this is some personal history! I found an old tape from my grandparents that shows my family and some friends and relatives, our house, and the “neighborhood” of Crab Cove in 1990. There’s even an early saveitforparts invention!
In the further adventures of my dumpster-dived satellite dish, I aimed it at the GOES-16 weather satellite, about 22,000 miles away in geosynchronous orbit. It turns out that a commercial TV dish is a little too small for this particular use (TV sats are the same distance away but have much more powerful transmitters). I couldn’t find a big antique dish and didn’t want to pay money for a GOES-rated Wifi dish (which you can buy on Amazon), so I made mine bigger!
I extended my dish in every direction with cardboard, then covered it in metal foil tape. And it really works… somehow. The signal and error rates are a bit marginal, but I can still download nice pretty pictures of the earth! A few examples are in the video, and below.
For more of the technical stuff, I’m using an RTL-SDR Blog v3 software defined radio, a SAWbird+GOES LNA from Nooelec, a cantenna feedhorn, and a Raspberry Pi computer for processing. I found that other Linux distibutions don’t quite work with the collection of code and drivers needed for this.
The cardboard won’t last long-term, so I’m looking for an antique C-band dish that I can set up as a more permanent solution. However, for a cheap and expedient ground station, this worked pretty well!
You can piece this together with other parts and antennas, but you will at minimum need the SAWbird LNA and an SDR that can handle 1700mhz. The ability to power the filter via Bias-Tee from the SDR is optional, however the Sawbird will back-feed power if using a usb cable, so in that case you’ll also want a DC filter. If you don’t want to buy the Wifi dish, any LARGE satellite dish should work with the cantenna design I used.
You have to be connected to a network for goesrecv / goesproc scripts to run, otherwise it can’t find localhost (because… reasons?). I had to be within wifi range to get this to work, even setting a local static IP didn’t help. There’s probably another way around this if you want to run this setup off-grid or remote where theres’ no network.
If your dish is made of reflective foil and the sun lines up just right, you might cook your feedhorn / LNA!
I built a small aluminum smelter and have been experimenting with melting down old cans and scrap metal. so far it’s not the easiest process, I still need to work out some kinks and issues. Here are a couple videos on the project so far, I plan on doing more soon.
